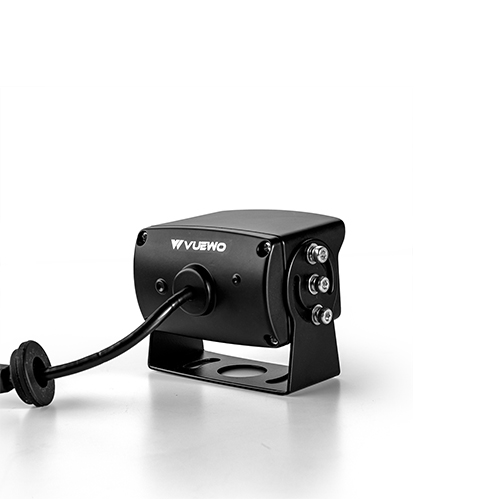

Built-in AI Camera with Flexible Detection Zones VW-806


1.1 Pedestrian and vehicle identification and detection

  • Pedestrian and vehicle motion or standstill inside the predefined detection zones, it will trigger the alarm speaker
  • The closer pedestrian or vehicle approach to, the,the hastier the alarm speaker broadcasts

1.2 Weather proof IP69K

IP69K resistant to any harsh environment.

1.3 External Wi-Fi communication and upgrading

  • Mobile phone connects to AI camera via WIFI dongle,configurations on the detection zones, and other setups
  • Upgrade package in the U-drive connecting to USB port to do upgrading

1.4 Multiple ports for accessories

  • AHD、I/O、USB、RS232、CAN、RJ45 port,easy for intersection and communication。(dedicated cables needed)
  • Visual &audible alarm speaker、GPS、monitor、MDVR etc,easy for customs special combination。(dedicated cables needed)


blind spot detection camera

Technical Specs

Working temp -20 ~ 70℃, RH95% MAX
Storage temp -40 ~ 85℃, RH95% MAX
IP level IP69K
Imaging sensor 1/2.8″ CMOS
FPS 25~30
Video output AHD
Output IO /USB/RS232/RJ45
Resolution 1920 (H)  x 1080 (V)
Pixel size 2.8 μm x 2.8 μm
Scan mode Progressive scanning
Synchronizing Internal
AGC Auto
White balance Auto
BLC Auto
Voltage input DC10V~32V
Audio Supported
Lens view angle 140°
