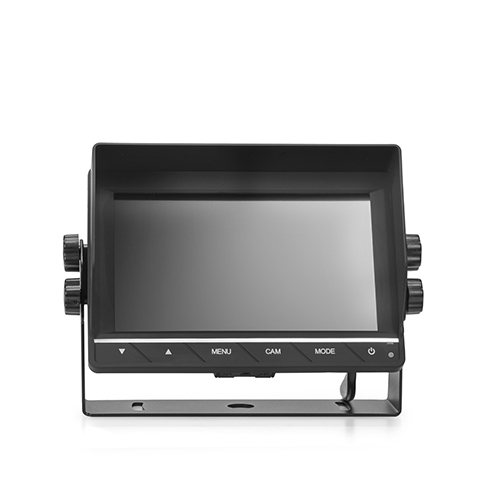

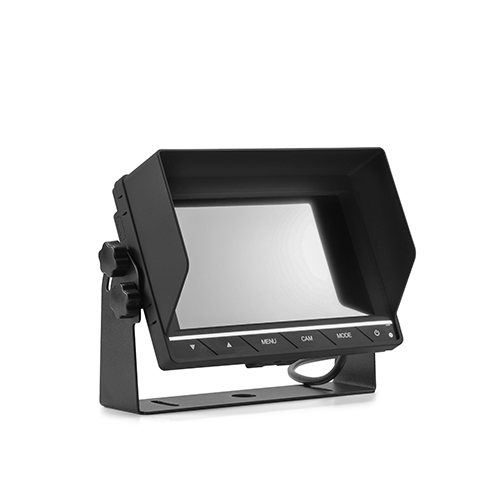

7-inch Touch Button LCD Vehicle Monitor

Model code: VW-VM-709




With tough tests guaranteed, VUEWO released his new VW-VM-709 touch button monitor to help with safe driving and visual assistance of drivers.

This new model was designed with more rugged body structure to be suitable for even tougher work circumstance in commercial vehicles. High brightness of LCD screen and sensitive touch control make it more accepted by vehicle drivers, who suffers long time fatigue driving in his journey. Suggested for forklift, bus, logistic trucks …



  1. Multilingual menu: English, French, German, Spanish, Portuguese, Italian, etc.;
  2. Convenient touch button design, can also be operated by remote control;
  3. Support simultaneous display of 2-way camera video, support 1-way camera audio input (optional);
  4. The image can be flipped up and down;
  5. The second camera has a trigger control line, when there is a trigger, it will automatically switch;
  6. In standby mode, it will automatically power on when triggered and switch to the corresponding camera;
  7. The wide voltage power supply range is 12~24V, with power short circuit protection function;



screen size 7″ IPS Screen/16:9
resolution 1024(W)* R.G.B * 600(H)
format PAL/NTSC
brightness 500cd/㎡
contrast 800:1
Visible range 154.08(W) × 85.92(H) mm
Viewing angle left 85°/right 85°/up 85°/down 85°
image settings brightness, chroma, contrast
video format CVBS/AHD
mirror flip function Non-mirrored, mirrored, flipped, mirrored-flipped
video channel 2ch video input
reverse function 1-way reversing (ruler setting function)
ruler function 2-way rulers, rulers switch automatically
power supply 12/24V,DC/<6W
Operating temperature -20℃ to +70℃
Storage temperature -25℃ to +75℃




  1. Monitor VW-VM-709, x1 pc;
  2. Bracket, x1 pc;
  3. Sunshield, x1 pc;
  4. Adapter cable, x1 set;
  5. Remote control, x1 pc;
  6. Screw package, x1 pc;
  7. Manual, x1 pc;



N.W.: 834G        G.W.: 1068G         Box size: 27*19.7*7.3cm



For detailed specifications, please contact Vuewo Team.
