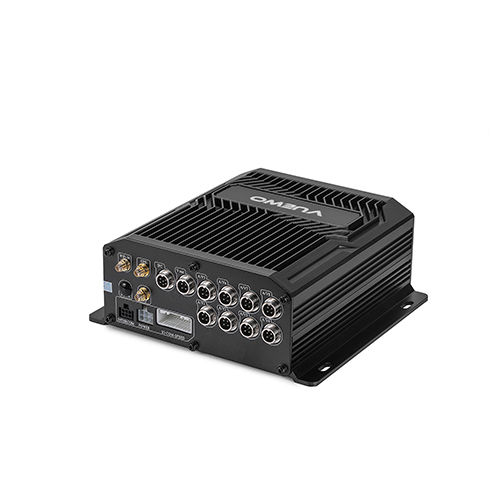

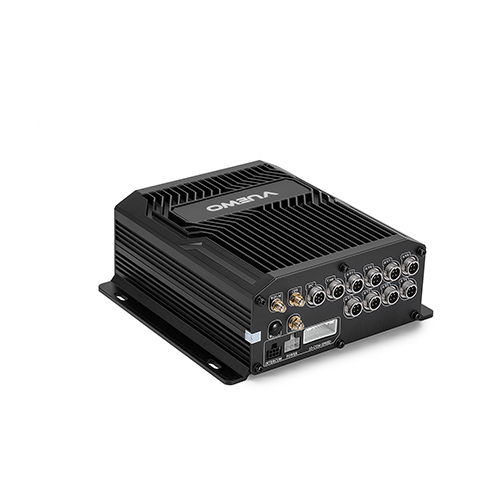

Description
KEY FEATURES
- Embedded compact design, low power consumption, high efficient processing.
- 265&H.264 compress, high reliability.
- 9CH 1080P or 5CH 1080P HD recording, supports 4TB hard disk & 256GB SD card.
- Optional 4G, GPS, Wi-Fi
- Built-in 3-aix G-sensor.
- Data protection when in sudden power off, optional inside-laid UPS battery.
- Rich external ports, incl. 3x RS232, 1x RS485, 8x alarm in & 2x alarm out ports, VGA etc.
- Auto image switch of car left/right turning, backing change.
- With a simple hard disk installation and a good and reliable anti-shake protection system.
- Directly mouse controlled menu entering.
- Export of video recordings directly via USB port.
- CMS platform ability for big fleet and user management.
- Simple easy to operate video playback software.
TECHNICAL SPECIFICATIONS
| ITEM | PARAMETER | 5CH 1080P | 9CH 1080P |
| System | Language | English | |
| Operation System | Linux | ||
| Interface | Imaging menu operation interface (OSD Menu) | ||
| Password Security | Two levels authority: admin, user | ||
| Video | Video Input | 4 AHD + 1 IP camera input | 8 AHD + 1 IP camera input |
| Video Output | 1 composite video & 1 VGA outputs（Optional） | ||
| Video standard | PAL, NTSC | ||
| Video compression | H.264 & H.265 Main profile, 240 frame / sec | ||
| Video Display | Free combination screen video | ||
| Audio | Audio Input | 4 audio input | 8 audio input |
| Audio Output | 2 audio output | ||
| Audio Code | G726/G711 | ||
| Way of recording | Simultaneous AV recording | ||
| Image Processing&Storage | Image format | CIF/HD1/D1/720p/1080P optional | CIF/HD1/D1/720p/1080P optional |
| Standard of Video Stream | ISO14496-10 | ||
| Video code rate | CIF: 1536Kbps ~ 128Kbps, | ||
| HD1: 2048Kbps ~ 380Kbps, | |||
| D1: 2048Kbps ~ 400Kbps, | |||
| 720p: 2048Kbps ~ 4096Kbps, | |||
| 1080P: 2048kbps~8192kbps | |||
| Image quality: Grade 1(best quality) – 8(worst) | |||
| Audio Code Rate | 40KB/s | ||
| Data Storage | Support 1x 4TB HDD & 1x 256GB SD storage | ||
| Trigger | Trigger input | 8x Trigger input | |
| Trigger output | 2x Trigger output, with 12V high electrical level | ||
| Communication Port | RS232 port | 3x RS232 | |
| RS485 port | 1x RS485 | ||
| RJ45 Port | 1x 10M/100M auto adjust Ethernet port | ||
| Extendable Port | Intercom | support | |
| Speed pulse | External connect | ||
| Others | LED panel | ||
| Wireless Modules | 3G WCDMA | optional | |
| 4G LTE | optional, support TD-LTE/FDD-LTE | ||
| Wi-Fi | optional, 802.11b/g/n | ||
| GPS | Optional, embedded module, show Geo-location, speed etc. Wireless upload function (Optional) |
||
| Acceleration sensor | G-sensor | Built-in | |
| Software | Vehicle Network Management System (CNMS / CMS) | 4G video monitoring and GPS tracking etc. PC/ Web/Android/iPhone/iPad platforms, multi-languages. |
|
| Vehicle Analysis Software (VAS) | Video playback and analysis | ||
DIFFERENCES OF VW-4H AND VW-8H SERIES
| FUNCTIONS | 4CH AHD1080P + 1CH 1080P IPC | 8CH AHD1080P + 1CH 1080P IPC |
| Wireless Communications | Through Wi-Fi/4G network, multi functions are achieved such as: real-time monitoring, video download, 2-way audio, parameter config, remote upgrade, remote control etc. | |
| Recording | 1~5CH 1080p real-time AV recording both locally and remotely. | 1~9CH 1080P real-time AV recording both locally and remotely. |
| PAL for example:
support 5CH CIF/HD1/D1/720p/1080P @25fps. |
PAL for example:
support 9CH CIF/HD1/D1/720P @25fps. 8CH 1080P @15fps. |
|
| Support PAL; NTSC | ||
| OSD overlay info incl. time, channel, vehicle ID, GPS, speed etc. | ||
| Storage & Playback | Support 1x 4TB HDD & 1x 256GB SD storage | |
| Support 5 AV synchronous playback | Support 9 AV synchronous playback | |
| Support PC playback | ||
| Support remote search and playback | ||
| Support play, pause, slow, fast etc. | ||
| Black Box Function | Recording incl. speed, GPS, temperature, oil level etc. | |
| Support 6x switches with data collect | ||
| Support local recording with vehicle info display | ||
| Support real-time upload remotely, and history search and check | ||
WORKING PARAMETERS
| Item | Parameter | Instruction |
| Power Input | 8V～36V | Voltage Input: ＋8V～＋36V Power will be auto off to self-protection activated if device is out of this range for long time, |
| Power Output | 12V | Voltage output 12V (+/-0.2V 0), current for max. 4A |
| ACC | ≤6V | ACC Off |
| ≥7.5V | ACC On | |
| Video Input Impedance | 75Ω | Average 75Ω per video channel |
| Video Output Voltage | 2V p-p | 75Ω per each 2V p-p CVBS signal |
| I/O Interface | 0-5.8V | Defined as low level alarm |
| > 5.8 V | Defined as high level alarm | |
| SD Card Interface | 1x HDD slots 1x SD slots |
HDD (Hard Disk) of 2.5” SATA, 4TB max.
SD card of current brands, 256GB max. |
| Working Temperature | -30°C~+80°C | Temperature in well ventilated condition |
