FEATURES
- Multilingual menu: English, French, German, Spanish, Portuguese, Italian, etc.;
- Convenient touch button design, can also be operated by remote control;
- Support simultaneous display of 2-way camera video, support 1-way camera audio input (optional);
- The image can be flipped up and down;
- The second camera has a trigger control line, when there is a trigger, it will automatically switch;
- In standby mode, it will automatically power on when triggered and switch to the corresponding camera;
- The wide voltage power supply range is 12~24V, with power short circuit protection function;
TECHNICAL SPECIFICATIONS
| screen size | 7″ IPS Screen/16：9 |
| resolution | 1024（W）* R.G.B * 600(H) |
| format | PAL/NTSC |
| brightness | 500cd/㎡ |
| contrast | 800:1 |
| Visible range | 154.08(W) × 85.92(H) mm |
| Viewing angle | left 85°/right 85°/up 85°/down 85° |
| image settings | brightness, chroma, contrast |
| video format | CVBS/AHD |
| mirror flip function | Non-mirrored, mirrored, flipped, mirrored-flipped |
| video channel | 2ch video input |
| reverse function | 1-way reversing (ruler setting function) |
| ruler function | 2-way rulers, rulers switch automatically |
| power supply | 12/24V，DC/<6W |
| Operating temperature | -20℃ to +70℃ |
| Storage temperature | -25℃ to +75℃ |
IN-PACKAGE

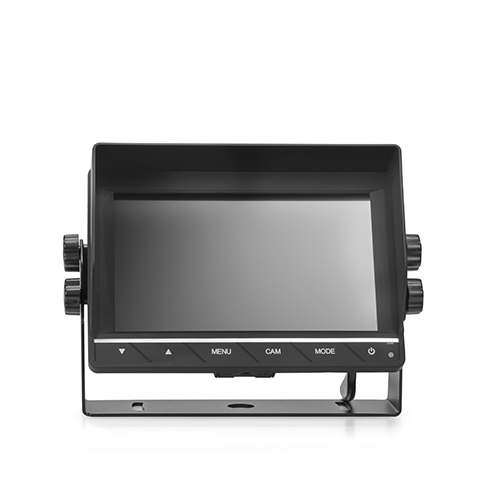

- Monitor VW-VM-709, x1 pc;
- Bracket, x1 pc;
- Sunshield, x1 pc;
- Adapter cable, x1 set;
- Remote control, x1 pc;
- Screw package, x1 pc;
- Manual, x1 pc;
PACKING INFO
N.W.: 834G G.W.: 1068G Box size: 27*19.7*7.3cm
For detailed specifications, please contact Vuewo Team.
